Robotic Boomerang Automation Solutions for Edge Banding Machines
Modern industrial production demands high-speed operation and maximum efficiency. Robotic boomerang automation systems enable single-sided edge banders to operate as cell-style closed systems. By automatically returning processed parts to the infeed, these systems allow edge banders to run continuously with minimal operator intervention, significantly increasing productivity and operational efficiency.
What Are Robotic Boomerangs?

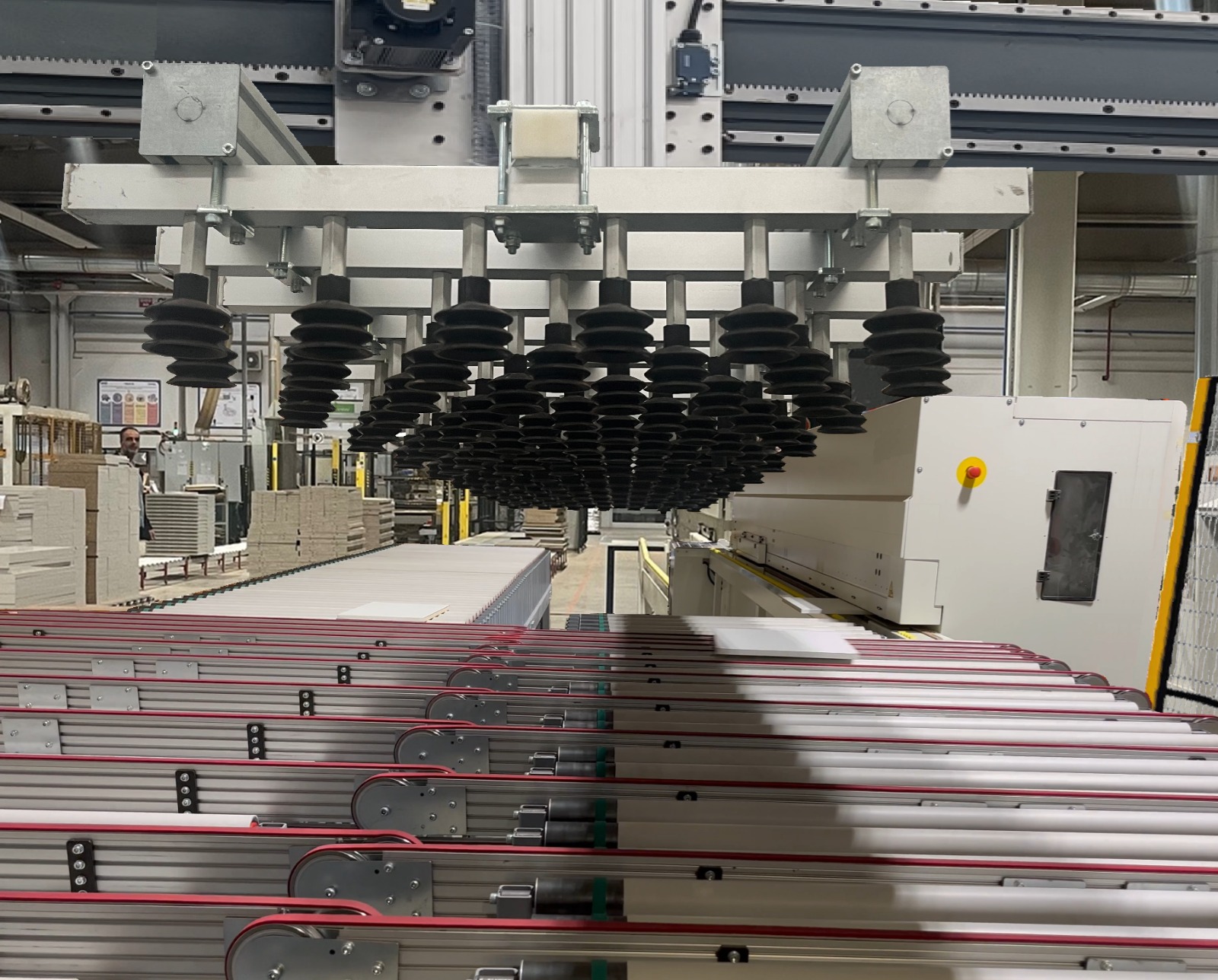

Robotic boomerang systems are advanced automation solutions designed to work in conjunction with single-sided edge banders. The system automatically rotates, transports, and palletizes panels after they have completed all required processing passes.
By tracking every panel moving through the edge bander, the system determines the correct orientation and automatically rotates and places each panel onto the return conveyor according to the production data. This ensures accurate handling, continuous workflow, and efficient material management throughout the edge banding process.
How Does A Robotic Boomerang System Work?

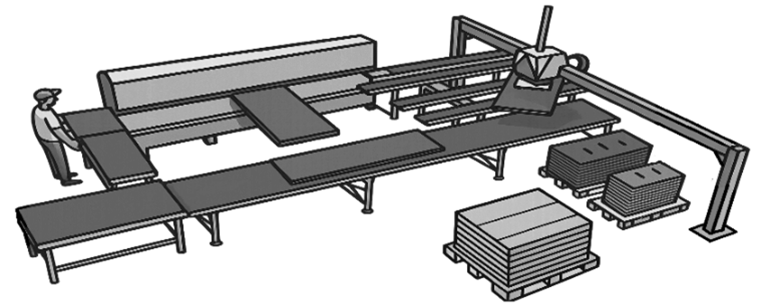

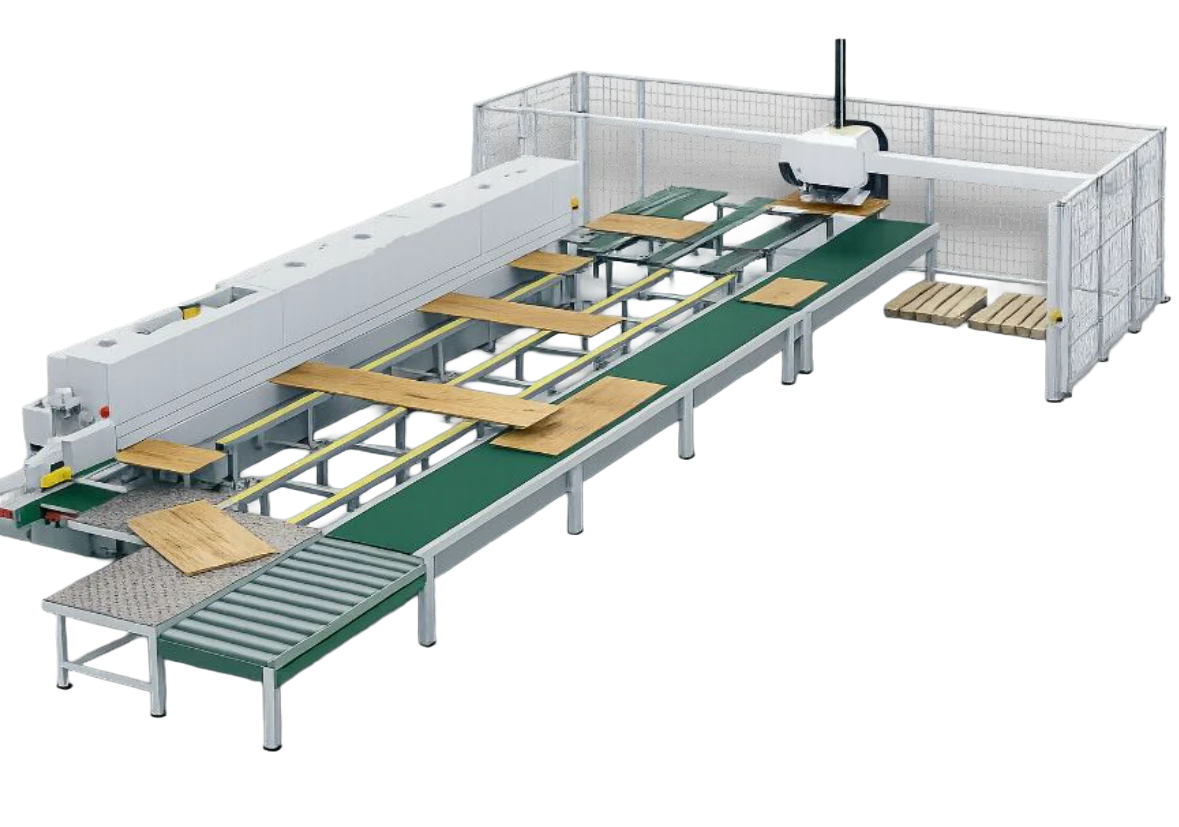

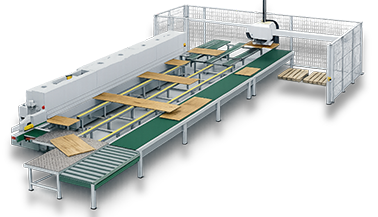

The Boomerang System is an intelligent transport and collection system integrated alongside the edge banding machine. At the start of the process, the operator defines the required number of passes and material parameters through the system interface. The Boomerang System then automatically feeds the panels into the edge bander and manages their movement throughout the processing cycle.
After each pass, the system uses robotic rotation to automatically reorient the panels and return them to the infeed for the next pass. Once all edge banding passes are completed, the panels are transferred to the palletizing or collection area. Any remaining waste material is automatically collected and transferred to a designated recycling area.
This fully automated cycle continues uninterrupted, enabling continuous production with minimal human intervention.
The Advantages of Robotic Boomerang Systems
Using the Boomerang System provides several key advantages:
- Increased Efficiency
Production processes are optimized through continuous material flow and automated handling, allowing the edge banding machine to operate without interruptions. - Cost Reduction
Material waste is minimized through precise panel handling and automated process management, helping reduce overall production costs. - Environmentally Responsible Production
Efficient waste collection and recycling contribute to a more sustainable and environmentally friendly manufacturing process. - Improved Operator Productivity
Operators are relieved from manual tasks such as material handling and waste collection, allowing them to focus on higher-value activities and increasing overall productivity.

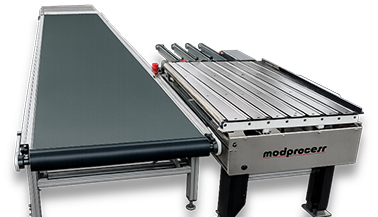

- Conveyor Width: 500-2200 mm
- Conveyor Length: between 800-12000 mm
- Speed Adjustments: Standard
- Roller or Pneumatic Sliding Table System
Panel Specifications for Automation
- Panel Length: 200-1500 mm
- Panel Width: 200-800 mm
- Panel Thickness: 10-60 mm
- Panel Weight: 50 kg
- Speed: Synchronous operation with edge banding machines up to 30 meters/minute
Integrate a Robotic Boomerang System to Achieve the Most of Your Edge Bander
Let’s integrate a robotic boomerang system to increase your edge banding throughput
