LP UP SERIES

LP UP 3000 Robotic Automation System for Through-Feed Boring Machines

Single-Side feeding robotic material handling robot for automating through-feed boring machines. Delivering exceptional results while minimizing human input.

Request information

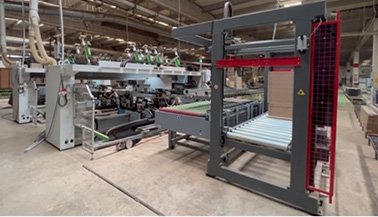

Single-Side Gantry Robot Automation for Through-Feed Boring Lines

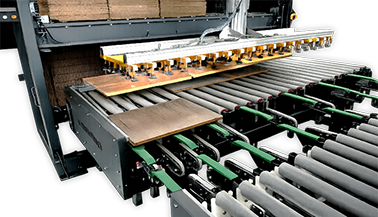

  1. Works as a single lift automatic loading and unloading system for through-feed boring machines with integrated software
  2. All motions are servo-motor controlled
  3. The servo system enables the precise control of positioning, movement, and synchronization
  4. Automatically loads and stacks panels in an
    ordered sequence, in single, double, or 3×6
    matrix layouts
  5. PLC touchscreen provides easy control of
    infeed and outfeed functions
  6. Innovative stacking platform movement minimizes the travel time of the robot, lowering cycle times

The Future of Production Is Integrated Automation

Automation and robotic technologies are shaping the future of industrial production. Automatic loading and unloading robot systems for through-feed boring machines combine these technologies to enhance operational efficiency and strengthen the competitiveness of manufacturing businesses. These systems enable faster, safer, and more flexible production processes while reducing manual handling.

By integrating automatic loading and unloading robot systems into through-feed boring operations, manufacturers can optimize production workflows and significantly increase efficiency. This transition allows businesses to strengthen their competitive advantage and move toward more advanced, future-ready manufacturing environments.

Production-Centric Systems

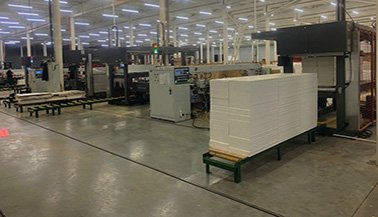

Modprocess LP UP 3000 is designed to maximize throughput and enable uninterrupted production. Once the panels are loaded into the lift system, the process operates fully automatically without requiring further human intervention.

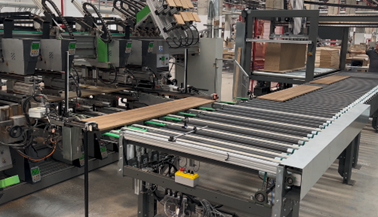

The LP UP 3000 functions in-line with the through-feed boring machine and follows the control signals of the automated equipment to feed new panels into the system. This synchronization ensures a continuous production flow and allows the machine to operate without unnecessary stops, significantly improving overall productivity.

Data-Oriented Production

The LP UP 3000’s interface enables real-time monitoring of key operational parameters such as cycle time, throughput rate, and other performance indicators. This allows factories to continuously track production performance and make informed decisions to optimize their operations.

Easy Maintenance and Servicing

Modprocess’s automatic loading and unloading robot systems provide easy maintenance and service access. Their modular structure and remote monitoring features enable maintenance processes to be optimized and machine downtime to be minimized. Additionally, with expert technical support and services, businesses maintain uninterrupted production.

Global compatibility and standards
Modprocess robotic systems are designed and manufactured in accordance with international standards; this ensures global market compatibility while also ensuring product quality and reliability.

Technical specifications

Required panel specifications (can be altered for full factory implementations)

  • Panel Length: between 500-3000 mm
  • Panel Width: between 300-850 mm
  • Panel Thickness: between 10-60 mm
  • Panel Weight: maximum 40 kg
  • Working Speed: 6-18 panels per minute
  • Vacuum Pump Power: 7.5 Kw
  • Stack Height: maximum 1350 mm
  • Movement: Servo
  • PLC-Controlled System
