MODCLOSE SERIES

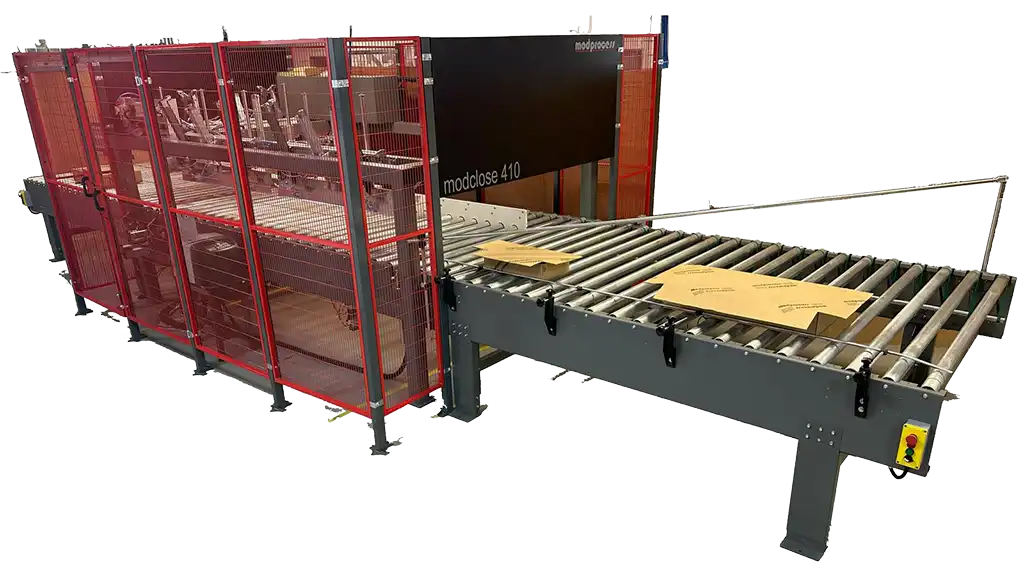

MODCLOSE 410 Automatic FEFCO 410 Box Closing Machine
Engineered to automatically close and seal FEFCO 0410-style boxes of varying sizes using hot-melt adhesive.
Ideal Solution for Disassembled Product Packaging
Designed to optimize packaging processes and maximize productivity, the MODCLOSE 410 automatic box-closing machine represents a significant advancement in reliability and efficiency. This innovative system automates carton sealing operations within industrial production settings, providing rapid, secure adhesion and consistently dependable packaging results. The MODCLOSE 410 is particularly effective for manufacturers shipping disassembled products, thanks to its capability to seal very thin cartons, thereby reducing shipping volumes and lowering transportation costs. When integrated with the MODBOX 2500, the MODCLOSE 410 further enhances overall packaging output and efficiency.
Engineered to Eliminate Packaging Bottlenecks. Stay Ahead of Schedule and Boost Your Production Efficiency
The MODCLOSE 410 automatic cardboard box sealer is an essential solution for modern production facilities. Combining advanced technology with intuitive operation, it helps companies optimize packaging processes while ensuring strong and reliable box closing.
Advanced Gluing and Closing System for Fefco 410-Style Boxes
The MODCLOSE 410 automatic carton- closing system is engineered to optimize packaging processes and significantly enhance productivity. It represents a breakthrough in reliability and efficiency by fully automating carton sealing in industrial production environments, delivering rapid, secure adhesion.
Technical Specifications:

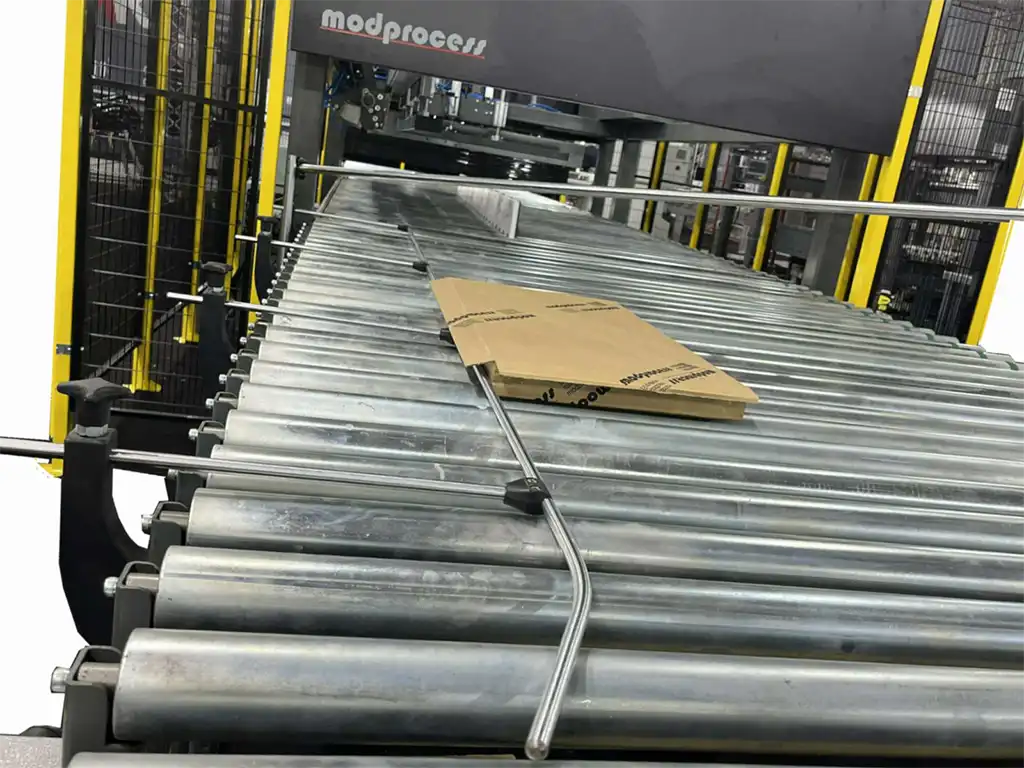

Conveyor system for manual box preparation and panel loading
Automatic box-closing unit with size adjustment
Optional label-sticking unit
Integrated output conveyor
Up to 8 boxes per minute (dependent on box dimensions)
Box Specifications:
Box Type: FEFCO 0410
Cardboard Thickness: 3 – 8 mm
Package Width (Min–Max): 250 – 1200 mm
Package Length (Min–Max): 400 – 2400 mm
Package Height (Min–Max): 35 – 250 mm (optional minimum to 25 mm available)
Minimum Folding Width: 250 mm
Corrugated Cardboard Thickness: 2 – 8 mm
Modprocess Difference:
The entry pressure bar is split into two, and the machine automatically selects whether to use one or both bars.
A patented pressure bar movement system enables the precise sealing of the box without any possibility of the edges lifting during shipment, as boxes sealed with other systems do.
Glue System:
Globally known brands are used for the glue tank and the nozzles.
All movements of the glue nozzle can be adjusted according to need through the integrated software.
Through another patented system, when maintenance mode is activated, the glue nozzles can easily be accessed, minimizing the time wasted.
Side support bar automatically adjusts according to the width of the package, allowing for continuous operation without any interruptions.
Control Unit:
The system is equipped with advanced software and a PLC architecture that controls all servo motors and the hot-melt glue dispensing system.
The user interface is designed for intuitive operation, allowing offset adjustments and full control of machine movements directly from the parameter screen.
All conveyor movements are driven by three independent servo motors, while five additional servo motors control the front and rear glue dispensing movement systems.
All critical machine movements are servo-driven—an engineering approach unique to Modprocess systems.
Amplify Your Packaging Throughput with MODCLOSE 410
Contact us to integrate MODCLOSE 410 into your packaging line
